Yealink M400-BASIC video conferencing system 20 MP Ethernet LAN Group video conferencing system

Availability:

Out of stock


MeetingEye 400, UHD 4K (3840 x 2160p), 30 fps, 20MP, Sony 1″ CMOS, FOV 133°, Storage 16GB, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2, AC 100-240V, DC 48V/0.7A

£1,059.08 Ex Vat

Out of stock

Compare

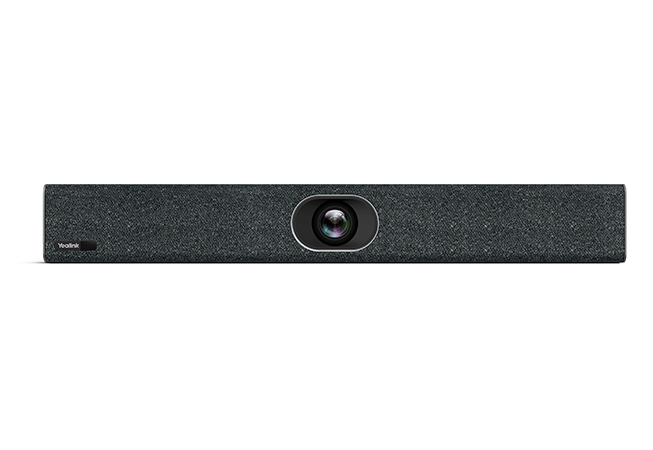

MeetingEye 400
Seize Every Moment, Catch Every Focus, Engage Everyone

Intelligent 4K Video Conferencing Endpoint for Middle Rooms

MeetingEye Easy Mode
Used as an USB VC endpoint

ONE CABLE TO CONNECT ALL

MeetingEye 400
Intelligent 4K Video Conferencing Endpoint for Small Rooms

MeetingEye 400 is an all-in-one intelligent video conference camera designed for small-size meeting rooms.

Combined with built-in automatic lens cap, the ultra-HD 4K camera ensures both fluency and security of meeting. The adapted AI technologies (face detection, sound source location, voice tracking etc.) also help elevate the working efficiency by providing smarter meeting experience. With all-in-one design and easy deployment, the brand new MeetingEye 400 renders every conference efficient and enjoyable.

20M Pixel UHD Bi-Camera | 133° FOV | Sony 1-Inch Oversized Sensor Perfect in Detail and Panorama
20M Pixel UHD Bi-Camera
Bi-Camera integration of 20 megapixel ultra wide angle 20-megapixel HD camera, provides vivid meeting images and distant close-up. Support dual 4K HD video calling and content sharing with a minimum of 2Mbps for 4Kp30.

133° FOV
No need for camera adjustment, everyone and everything will be perfectly seized and presented.

4X Digital Zoom
4X digital zoom allows you to see people, objects, whiteboard content and other details clearly, even at the end of a conference room.

AI Intelligent Framing
Efficient Conference

Empowered with advanced AI technologies including face detection, sound source location, voice tracking, etc., the camera automatically adjusts to the best framing solutions according to the participants’ quantity and location. Real-time close-up to the presenter and manual operations free allow all attendees well focus on the meeting.

Sound Tracking
Quality Sound Effect

8 MEMS single-direction microphones are built into a linear microphone array to enhance noise elimination and reverberation capability. The newest upgraded Beamforming algorithm brings accurate directional voice tracing and quality conservations with full-duplex technology.

Multiple Screen Projection Methods
Easy Content Sharing

Support WPP20 wireless screen transmitter, AirPlay, Miracast and other wireless screen projection methods, fast and convenient.

Automatic Lens Cap
Reliable Privacy Protection

Automatically opening in video conference and closing when not, the privacy-protection lens cap with visible state definitely erases “camera anxiety” in dailly.

All-in-one Design, Easy Deployment
Built-in camera, microphones, speakers, video codec, Wi-Fi and Bluetooth, MeetingEye 400 highly integrates all the functions conference needs and makes it simple to setup with minimum 3 cables.

Flexible Installation
Various installation methods according to the actual need ensures the best place of equipment, such as on the wall, TV racks, the tray or the counter.

SKU: M400-0010 Category:
Performance
Product type Group video conferencing system
Product colour Black
Bluetooth Yes
Bluetooth version 4.2
Number of cameras 1
Auto framing Yes
Auto-tracking Yes
Tracking modes Presenter mode
Meeting features Content sharing, Whiteboard
Technical details
Product type Group video conferencing system
Product colour Black
Bluetooth Yes
Bluetooth version 4.2
Sustainability compliance Yes
Number of cameras 1
Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS
Video
HD type 4K Ultra HD
Resolution at capture speed 1280×720@30fps, 1920×1080@30fps, 3840×2160@30fps
Megapixel (approx.) 20 MP
Video formats supported H.239, H.263, H.263+, H.264, H.265
Video codecs H.264 SVC, H.265, H.264 High Profile, H.264, H.263, H.263+
Supported video modes 360p, 540p, 720p, 1080p, 2160p
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum frame rate 30 fps
Dual stream H.239 (H.323)/BFCP (SIP)
HD-Ready Yes
Maximum video resolution 3840 x 2160 pixels
Streaming capability Yes
Audio
Speaker power 5 W
Voice codecs AJB, CNG, G.711, G.722.1, G.722.1C, G.729, PLC
Noise reduction Yes
Built-in speaker(s) Yes
Automatic gain control Yes
Number of speakers 1
Audio system full duplex Yes
Audio beamforming Yes
File formats
Video formats supported H.239, H.263, H.263+, H.264, H.265
Memory
Total storage capacity 16 GB
Ports & interfaces
USB 2.0 ports quantity 2
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI output ports quantity 1
Reset slot Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms 256-bit AES, HTTPS, SRTP, TLS
Networking standards IEEE 802.1p, IEEE 802.1x
Camera
Sensor type CMOS
Image sensor size 1″
Field of view (FOV) angle 133°
Megapixel (approx.) 20 MP
Communication protocol • H.323/SIP • Dual stream protocol: H.239 (H.323)/BFCP (SIP) • FECC: H.224/H.281 • H.323 protocol suite: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account
PTZ motors 4x e-PTZ camera
Camera type Single camera
Camera privacy shutter Yes
Zoom capability Yes
Face tracking Yes
Microphone
Number of microphone arrays 8
Security
Security algorithms 256-bit AES, HTTPS, SRTP, TLS
Computer system
Firmware upgradeable Yes
Sustainability
Sustainability compliance Yes
Operational conditions
Storage temperature (T-T) -30 – 70 °C
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 95%
Power
Power consumption (max) 10.2 W
AC input voltage 100 – 240 V
Power consumption (typical) 9.2 W
Power source type AC
DC output voltage 48 V
DC output current 0.7 A
Power consumption (idle) 8.8 W
Weight & dimensions
Width 600 mm
Depth 68 mm
Height 82 mm
Packaging content
Speaker included Yes
Wall mounting kit Yes
Microphone included Yes
Remote control included Yes
Camera included Yes
Packaging content • MeetingEye 600 Codec (integrate codec/camera/microphone/speaker) • VCR20 Remote Control • Wall Bracket
