Yealink MVC640 video conferencing system Ethernet LAN Group video conferencing system

Availability:

10 in stock

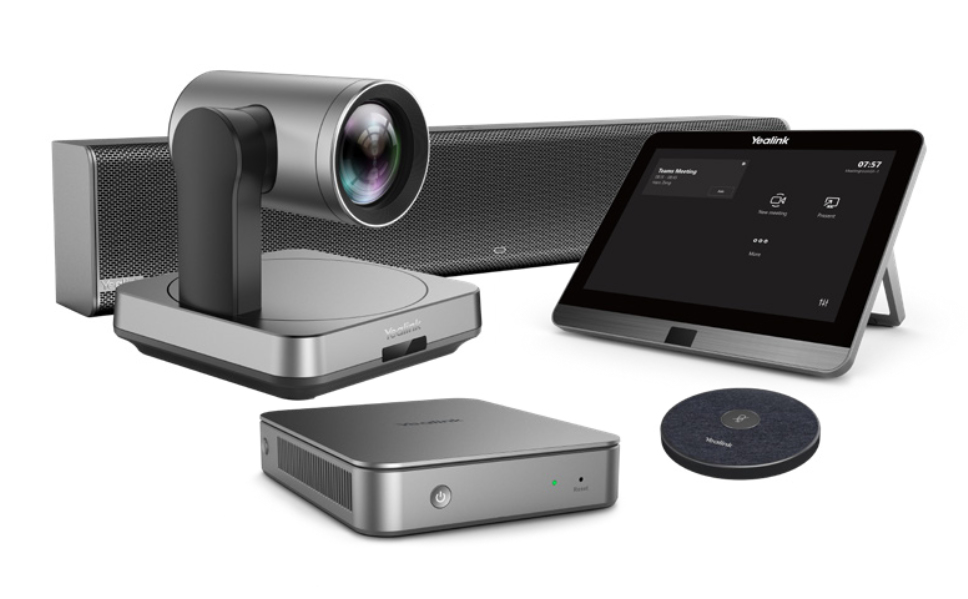

MVC640 Windows based Microsoft Teams Rooms, MCore Pro, 8′ Touch Screen, UVC84 12x Optical Zoom 4K Camera, 1x VCM36-W and 1x WPP20

£2,689.45 Ex Vat

10 in stock

Compare

4K Performance Capture All Movements Featured 4K sensor and 12x optical zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms. The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size. The auto-privacy protection design secures the safety of your meetings.  Embrace Wireless Flexibility Capture Voice Clearly With a built-in 3-microphone array and Yealink self-developed algorithm, VCM36-W features a 20ft (6m) and 360° voice pickup range and perfectly captures every voice in medium and large meeting spaces. Enjoying the wireless transmission, users just need to repair the microphone with the meeting room devices once for starting without cable clutter, enable to connect more microphones wirelessly according to the specific scenarios. Multi-mounting Options Simplified Connections The MCore mini-PC can be set up according to particular room layout. Mounting on the wall, sticking to the table can be realized. Also, in all Yealink MVC II room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time. One-Click to Share Users can enjoy plugging in the Yealink WPP20 with one click to share the screen wirelessly, or connecting the laptop to the meeting through the USB-C or HDMI port easily. In the Yealink MVC II room system, all participants have the flexibility of choosing either wireless or wired ways of content sharing. Remote Management Yealink MVC II series video solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices and peripherals on this platform remotely.

SKU: MVC640-C3-D11 Category:
Performance
Product type Group video conferencing system
Tilt angle range -90 – 40°
Pan range -100 – 100°
Product colour Black, Grey
Signal-to-Noise Ratio (SNR) 63 dB
PTZ control Yes
Bluetooth Yes
Number of cameras 1
Auto framing Yes
Technical details
Product type Group video conferencing system
Tilt angle range -90 – 40°
Pan range -100 – 100°
Product colour Black, Grey
Signal-to-Noise Ratio (SNR) 63 dB
PTZ control Yes
Bluetooth Yes
Number of cameras 1
Video
HD type 4K Ultra HD
Optical zoom 12x
Digital zoom 3x
Maximum frame rate 30 fps
Maximum video resolution 4096 x 2160 pixels
Audio
Microphone pick-up range 6 m
Memory
Internal memory 8192 MB
Storage media type SSD
Total storage capacity 128 GB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Line-out Yes
USB connector type USB Type-A, USB Type-B, USB Type-C
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 2
HDMI output ports quantity 2
HDMI input ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Wi-Fi Yes
Camera
White balance ATW, Auto, Manual
Aperture range (F-F) 1.6 – 2.8
Focal length range 3.9 – 46.8 mm
Minimum illumination 0.1 lx
Horizontal field of view 73°
Optical zoom 12x
Digital zoom 3x
Camera shutter speed 1/60 – 1/10000 s
Combined zoom 36x
Vertical field of view 45°
Diagonal field of view 80°
Camera type Single camera
Zoom capability Yes
Display
Display IPS
Display diagonal 20.3 cm (8″)
Display resolution 1280 x 800 pixels
Touchscreen Yes
Touchscreen type Capacitive
Microphone
Number of microphones 1
Microphone colour Grey
Features
Motion sensor Yes
Cable lock slot Yes
Computer system
Computer system type mini PC
Processor family Intel® Core™ i5
Operating system installed Windows 10 IoT Enterprise
Processor generation 8th gen Intel® Core™ i5
Computer case
Computer system type mini PC
Processor family Intel® Core™ i5
Operating system installed Windows 10 IoT Enterprise
Weight & dimensions
Package width 453 mm
Package depth 290 mm
Package height 600 mm
Packaging content
Number of microphones included 1
Speaker included No
Microphone included Yes
Remote control included Yes
Camera included Yes
